User manual for the Samson Stage 55 Handheld Wireless Microphone SW55VSHQ7 - 19
The user manual for the Samson Stage 55 Handheld Wireless Microphone SW55VSHQ7 - 19 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

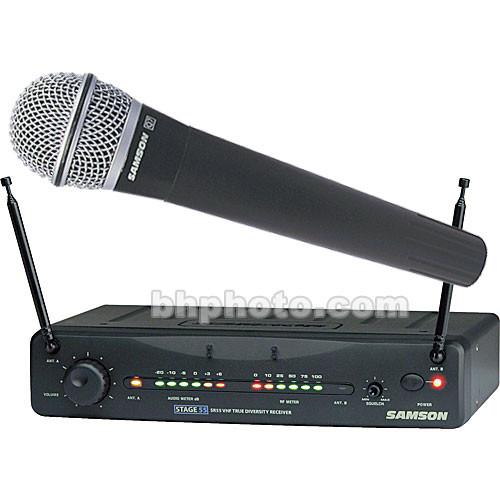

The Samson Stage 55 wireless microphone system provides affordable, quality wireless microphone technology to everyone. This system includes the SR55 diversity VHF receiver, and HT5 handheld transmitter with H5 microphone capsule.
|
If you own a Samson wireless systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Samson Stage 55 Handheld Wireless Microphone SW55VSHQ7 - 19 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Samson Stage 55 Handheld Wireless Microphone SW55VSHQ7 - 19:
| Type of System | Single Channel VHF Diversity Lavalier System | | RF Carrier Frequency Range | Channel 19 - 175.0 MHz | | Approx. Working Range | 300ft | | Overall Frequency Response | 40Hz to 15kHz +/- 3dB | | # Of Channels | Single frequency system, available in 25 different frequencies | | # Of Simultaneous Systems | 6 | | Type of Receiver | SR55 Single Conversion Superheterodyne, Diversity | | Type of Outputs | Balanced: 3-pin XLR male (+4dBm, 600 Ohm)
Unbalanced: 1/4" Phone (-10dBm, 5k Ohm) | | Headphone Monitoring | No | | Power Requirements | 12 Volts DC, 100mA typical (110 mA max.), AC adapter supplied | | Battery Type/Approx. Life | AC power only, not applicable | | Display | LED Indicators:
Antenna A or B: 2 LEDsAF Level: 6 LEDs
RF Level: 6 LEDs | | Mounting Options | Flat Surface or Half Rack Mountable | | Antenna Type | Internal | | Dimensions | 8.5 x 1.75 x 4.6 (216 x 44 x 116mm) | | Weight | Not specified by manufacturer | | Type of Transmitter | HT5 VHF Handheld Transmitter | | Type of Input Connector | Capsule Permanently Attached | | Type of Microphone | Q7 | | Polar Pattern | Cardioid | | Battery Type/Approx. Life | 9-Volt Alkaline: 6 hours typical | | Mute Switch | Audio On/Off (Mute Switch) | | Level Control | Yes, Trimpot | | Antenna Type | 1/4 wavelength telescopic | | Display | No | | Weight | 0.75 lb (20 g) | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 12.5 x 9.2 x 3.0" | |
The user manual for the Samson Stage 55 Handheld Wireless Microphone SW55VSHQ7 - 19 can be downloaded in .pdf
format if it did not come with your new wireless systems, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Samson users keep a unique electronic library
for Samson wireless systemss,
where you can use our link to download the user manual for the Samson Stage 55 Handheld Wireless Microphone SW55VSHQ7 - 19.
The user manual lists all of the functions of the Samson Stage 55 Handheld Wireless Microphone SW55VSHQ7 - 19,
all the basic and advanced features and tells you how to use the wireless systems.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Samson service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Samson Stage 55 Handheld Wireless Microphone SW55VSHQ7 - 19. User manuals are also
available on the Samson website under Pro Audio - Live Sound - Wireless Systems.
Question and answer discussion forum concerning user instructions and resolving problems with the Samson Stage 55 Handheld Wireless Microphone SW55VSHQ7 - 19
Post new comment to Samson Stage 55 Handheld Wireless Microphone SW55VSHQ7 - 19
Subject: Stage 5 SR5 receiver  | | Date: 24.02.2025 21:06:47 | Author: Kelly | | L5 semiconductor is blown - burnt past recognition. Looks like a resistor but please identify this part for me. Thank you | | Reply |
| Subject: Stage 5 SR5 receiver | | Date: 24.02.2025 21:01:42 | Author: Kellybetter | | L5 semiconductor is blown. Looks like a resistor but burnt past recognition. Please identify the L5 part for me. | | Reply |
