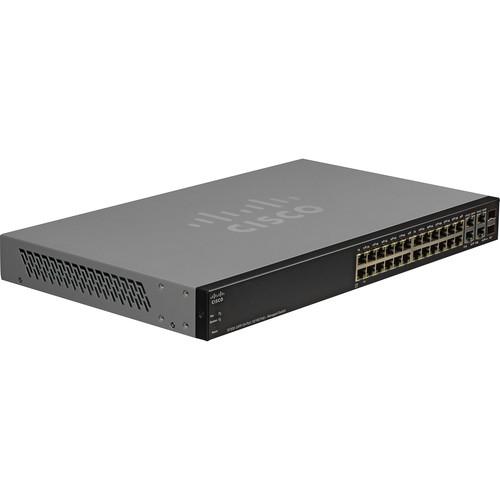

User manual for the Cisco SF300-24PP 24-Port 10/100 PoE Managed SF300-24PP-K9-NA
The user manual for the Cisco SF300-24PP 24-Port 10/100 PoE Managed SF300-24PP-K9-NA provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Switches, Bridges & Hubs.
The SF300-24PP 24-Port 10/100 Gigabit PoE Managed Switch from Cisco delivers the features you need to improve the availability of your critical business applications, protect sensitive data and optimize network bandwidth to deliver information and applications more effectively. It provides a reliable foundation for your business network. The Cisco SG300-24PP is easy to set up and use and it provides a suitable combination of affordability and capabilities for small businesses and helps you create an efficient and an optimal connected workforce.
|
If you own a Cisco network switches, bridges & hubs and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Cisco SF300-24PP 24-Port 10/100 PoE Managed SF300-24PP-K9-NA in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Cisco SF300-24PP 24-Port 10/100 PoE Managed SF300-24PP-K9-NA:
| Performance | Capacity in Millions of Packets per Second (Mp/s) (64-byte packets): 9.52
Switching Capacity in Gb/s: 12.8 | | Layer 2 Switching | Spanning Tree Protocol: Standard 802.1d Spanning Tree support
Fast convergence using 802.1w (Rapid Spanning Tree), enabled by default
Multiple Spanning Tree instances using 802.1s
Port Grouping: Support for IEEE 802.3ad Link Aggregation Control Protocol
Up to 8 groups
Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
VLAN: Support for up to 256 VLANs simultaneously (out of 4096 VLAN IDs)
Port-based and 802.1Q tag-based VLANs
MAC-based VLAN
Management VLAN
Private VLAN Edge, also known as protected ports, with multiple uplinks
Guest VLAN
Unauthenticated VLAN
Voice VLAN: Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS
Q-in-Q VLAN: VLANs transparently cross a service provider network while isolating traffic among customers
Generic VLAN Registration Protocol/Generic Attribute Registration Protocol: Protocols for automatically propagating and configuring VLANs in a bridged domain
Dynamic Host Configuration Protocol Relay at Layer 2: Relay of DHCP traffic to DHCP server in different VLAN. Works with DHCP Option 82
Internet Group Management Protocol Versions 1, 2 and 3 Snooping: IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups (source-specific multicasting is also supported)
IGMP Querier: IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
Head-of-Line (HOL) Blocking: HOL blocking prevention | | Layer 3 | IPv4 Routing: Wirespeed routing of IPv4 packets
Up to 32 static routes and up to 32 IP interfaces
Classless Inter-Domain Routing: Support for CIDR
DHCP Relay at Layer 3: Relay of DHCP traffic across IP domains
User Datagram Protocol Relay: Relay of broadcast information across Layer 3 domains for application discovery or relaying of BootP/DHCP packets | | Security | Secure Shell Protocol: SSH secures Telnet traffic to and from the switch; SSH v1 and v2 are supported
Secure Sockets Layer: SSL Support: Encrypts all HTTPS traffic, allowing highly secure access to the browser-based management GUI in the switch
IEEE 802.1X (Authenticator Role): RADIUS authentication and accounting, MD5 hash; guest VLAN; unauthenticated VLAN, single/multiple host mode and single/multiple sessions Supports time-based 802.1X
Dynamic VLAN assignment
STP Bridge Protocol Data Unit Guard: A security mechanism to protect the network from invalid configurations.
A port enabled for BPDU Guard is shut down if a BPDU message is received on that port
STP Root Guard: This prevents edge devices not in the network administratorâ™s control from becoming Spanning Tree
DHCP Snooping: Filters out DHCP messages with unregistered IP addresses and/or from unexpected or untrusted interfaces. This prevents rogue devices from behaving as a DHCP Server
IP Source Guard (IPSG): When IP Source Guard is enabled at a port, the switch filters out IP packets received from the port if the source IP addresses of the packets have not been statically configured or dynamically learnedfrom DHCP snooping. This prevents IP Address Spoofing
Dynamic ARP Inspection (DAI): The switch discards ARP packets from a port if there are no static or dynamic IP/MAC bindings or if there is a discrepancy between the source or destination address in the ARP packet. This prevents man-in-the-middle attacks
IP/Mac/Port Binding (IPMB): The features (DHCP Snooping, IP Source Guard, and Dynamic ARP Inspection) above work together to prevent DOS attacks in the network, thereby increasing network availability
Secure Core Technology: Ensures that the switch will receive and process management and protocol traffic no matter how much traffic is received
Secure Sensitive Data (SSD): A mechanism to manage sensitive data (such as passwords, keys, etc.) securely on the switch, populating this data to other devices, and secure autoconfig. Access to view the sensitive data asplaintext or encrypted is provided according to the user configured access level and the accessmethod of the user
Layer 2 Isolation Private VLAN Edge (PVE) with community VLAN: PVE (also known as protected ports) provides Layer 2 isolation between devices in the same VLAN, supports multiple uplinks
Port Security: Locks MAC addresses to ports, and limits the number of learned MAC addresses
RADIUS/TACACS+: Supports RADIUS and TACACS authentication. Switch functions as a client
Storm Control: Broadcast, multicast, and unknown unicast
DoS Prevention: DoS attack prevention
Congestion Avoidance: A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization
ACLs: Support for up to 512 rules
Drop or rate limit based on source and destination MAC, VLAN ID or IP address, protocol, port, differentiated services code point/IP precedence, TCP/ UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol packets, IGMP packets, TCP flag | | Quality of Service | Priority Levels: 4 hardware queues
Scheduling: Strict priority and weighted round-robin
Queue assignment based on DSCP and class of service (802.1p/CoS)
Class of Service: Port based; 802.1p VLAN priority based; IPv4/v6 IP precedence/type of service/DSCP based; Differentiated Services (DiffServ); classification and re-marking ACLs, trusted QoS | | Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad LACP, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP),IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 922, RFC 920, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1350, RFC 1533, RFC 1541, RFC 1542, RFC 1624, RFC 1700, RFC 1867, RFC 2030, RFC 2616, RFC 2131, RFC 2132, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 2576, RFC 4330, RFC 1213, RFC 1215, RFC 1286, RFC 1442, RFC 1451, RFC 1493, RFC 1573, RFC 1643, RFC 1757, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 1157, RFC 1493, RFC 1215, RFC 3416 | | IPv6 | IPv6: IPv6 host mode
IPv6 over Ethernet
Dual IPv6/IPv4 stack
IPv6 neighbor and router discovery
IPv6 stateless address auto-configuration
Path maximum transmission unit discovery
Duplicate address detection
ICMP version 6
IPv6 over IPv4 network with Intra-Site Automatic Tunnel Addressing Protocol support
IPv6 QoS: Prioritize IPv6 packets in hardware
IPv6 ACL: Drop or rate, limit IPv6 packets in hardware
Multicast Listener Discovery Snooping: Deliver IPv6 multicast packets only to the required receivers | | Management | Web User Interface: Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports configuration, system dashboard, system maintenance and monitoring
SNMP: SNMP versions 1, 2c, and 3 with support for traps, and SNMP version 3 user-based security model
Remote Monitoring: Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms and events) for enhanced traffic management, monitoring and analysis
IPv4 and IPv6 Dual Stack: Coexistence of both protocol stacks to ease migration
Firmware Upgrade: Web browser upgrade (HTTP/HTTPS) and TFTP
Upgrade can be initiated through console port as well
Dual images for resilient firmware upgrades
Port Mirroring: Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 8 source ports can be mirrored to one destination port. A single session is supported
VLAN Mirroring: Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 8 source VLANs can be mirrored to one destination port. A single session is supported
Dynamic Host Configuration Protocol (Options 66, 67, 82, 129 and 150): DHCP Options facilitate tighter control from a central point (DHCP server) to obtain IP address, auto-configuration (with configuration file download), DHCP relay, and hostname
Secure Copy (SCP): Securely transfer files to and from the switch
Auto-configuration with Secure Copy (SCP) File Download:Enables secure mass deployment with protection of sensitive data
Text-Editable Config Files: Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment
Smartports: Simplified configuration of QoS and security capabilities
Auto Smartports: Applies the intelligence delivered through the Smartport roles and applies it automatically to the port based on the devices discovered over CDP or LLDP-MED. This facilitates zero touch deployments Textview CLI: Scriptable command-line interface. A full CLI as well as a menu-based CLI is supported
Cloud Services: Support for Cisco Small Business FindIT Network Discovery Utility
Localization: Localization of GUI and documentation into multiple languages
Other Management: Traceroute; single IP management; HTTP/HTTPS; SSH; RADIUS; port mirroring; TFTP upgrade; DHCP client; BOOTP; SNTP; Xmodem upgrade; cable diagnostics; ping; syslog; Telnet client (SSH secure support)
Time-Based Port Operation: Link up or down based on user-defined schedule (when the port is administratively up)
Login Banner: Configurable multiple banners for web as well as CLI | | Power Efficiency | Energy Detect: Automatically turns off power off on Gigabit Ethernet RJ-45 port when detecting link down
Active mode is resumed without loss of any packets when the switch detects the link up
Cable Length Detection: Adjusts the signal strength based on the cable length. It reduces the power consumption for cables shorter than 10 m
Disable Port LEDs:LEDs can be manually turned off to save on Energy | | General Features | Jumbo Frames: Frame sizes up to 10 KB supported on 10/100 and Gigabit interfaces
MAC Table: Up to 8000 MAC addresses | | Discovery | Bonjour: Bonjour locates devices such as printers, other computers and the services that those devices offer on a local network using multicast Domain Name System (mDNS) service records
Link Layer Discovery Protocol (802.1ab) with LLDP-MED Extensions: LLDP allows the switch to advertise its identification, configuration and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones
Cisco Discovery Protocol (CDP): CDP is a proprietary data link layer and network layer protocol which is used to share information about other directly connected Cisco equipment, such as the operating system version and IP address | | PoE Features | IEEE 802.3af PoE delivered over any of the RJ-45 ports within the listed power budgets
Power Dedicated to PoE: 180W
Number of Ports That Support PoE: 24 | | Power Consumption | Power Savings Mode: Energy Detect
System Power Consumption: 110 V, 26.7 W 220 V, 27.9 W
Power Consumption Case: 110 V, 218.57 W 220 V, 213.35 W
Heat Dissipation: 727.98 BTU/hr | | Ports | Total System Ports: 24 Fast Ethernet + 4 Gigabit Ethernet
RJ-45 Ports: 24 Fast Ethernet, 2 Gigabit Ethernet
Combo Ports (RJ-45 + SFP): 2 Gigabit Ethernet Combo | | Buttons | Reset Button | | Cabling Type | Unshielded twisted pair Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5 Ethernet or better for 1000BASE-T | | LEDs | System, Link/Act, PoE, Speed, LED power saving option | | Flash | 16 MB | | CPU | 128 MB | | Packet Buffer Memory | 8 Mb | | Power Supply | 100 to 240 V, 47 to 63 Hz, internal, universal | | Fan | 2 Pieces | | Acoustic Noise | 40.4 dB | | MTBF | At 40°C (hours): 171,504 | | Certifications | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A | | Environmental Requirements | Operating Temperature: 32 to 113°F (0°to 45°C)
Storage Temperature: -4 to +158°F (-20 to +70°C)
Operating Humidity: 10 to 90%, relative (non-condensing)
Storage Humidity: 10 to 90%, relative (non-condensing) | | Minimum Requirements | Web Browser: Mozilla Firefox version 8 or later; Microsoft Internet Explorer version 7 or later
Category 5 Ethernet network cable
TCP/IP, network adapter and network operating system (such as Microsoft Windows, Linux or Mac OS X) installed on each computer in the network | | Dimensions | 17.30 x 1.45 x 10.10â (44.00 x 4.44 x 25.70 cm) | | Weight | 8.25 lb (3.74 kg) | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 21.26 x 15.197 x 4.173" | |
