User manual for the Crown Audio XLS 1502 Stereo Power Amplifier XLS1502
The user manual for the Crown Audio XLS 1502 Stereo Power Amplifier XLS1502 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Power Amplifiers.

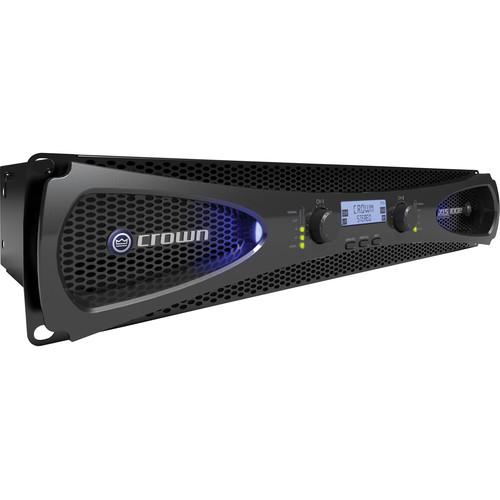

The Crown XLS 1502 Stereo Power Amplifier offers 525W at 4 Ohm in a lightweight chassis using the company's ultra-efficient DriveCore Class D amplification platform. The amplifier includes built-in DSP with a dedicated band pass filter per channel, an integrated PureBand Crossover System, and Peakx Limiters to provide maximum output while protecting your speakers.
For inputs, the rear panel includes a pair of XLR-3F connectors, 1/4" and RCA inputs for flexible connections with a selectable input sensitivity of either 1.4 Vrms or 0.775 Vrms. Outputs are provided on both SpeakOn and binding post connectors.
You can set the amplifier's sleep mode for a designated period of time without having to press a button, as well as turn off all LED indicators except for clip and thermal to reduce distractions in dark venues. A security mode can be engaged to disable menu buttons, which can be locked and unlocked by entering a combination code. Full system reset allows for factory settings to be restored and a remote power trigger allows you to turn the unit on and off.
|
If you own a Crown Audio power amplifiers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Crown Audio XLS 1502 Stereo Power Amplifier XLS1502 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Crown Audio XLS 1502 Stereo Power Amplifier XLS1502:
| Sensitivity | 1.4 Vrms | | Amplifier Power | 775 W at 2 ohm per channel
525 W at 4 ohm per channel
300 W at 8 ohm per channel
1550 W at 4 ohm bridged
1050 W at 8 ohm bridged | | Frequency Response | At 1 W, 20 to 20,000 Hz: +0 dB, -1 dB | | Signal to Noise Ratio | >103 dB (at 0.775 Vrms sensitivity, Signal to Noise is 6 dB lower) | | THD | >0.5% | | Intermodulation Distortion | <0.3% | | Damping Factor | >200 | | Crosstalk | At 1,000 Hz: >85 dB
At 20,000 Hz: >55 dB | | Dimensions (W x H x D) | 19 x 3.5 x 7.7" (48.3 x 8.9 x 19.6 cm) | | Weight | 8.6 lb (3.9 kg) | | Package Weight | 11.6 lb | | Box Dimensions (LxWxH) | 21.0 x 12.0 x 6.0" | |
The user manual for the Crown Audio XLS 1502 Stereo Power Amplifier XLS1502 can be downloaded in .pdf
format if it did not come with your new power amplifiers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Crown Audio users keep a unique electronic library
for Crown Audio power amplifierss,
where you can use our link to download the user manual for the Crown Audio XLS 1502 Stereo Power Amplifier XLS1502.
The user manual lists all of the functions of the Crown Audio XLS 1502 Stereo Power Amplifier XLS1502,
all the basic and advanced features and tells you how to use the power amplifiers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Crown Audio service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Crown Audio XLS 1502 Stereo Power Amplifier XLS1502. User manuals are also
available on the Crown Audio website under Pro Audio - Live Sound - Power Amplifiers.
