User manual Da-Lite 35177L Contour Electrol Motorized Projection 35177L

Operating instructions and pdf manual for use - Da-Lite 35177L Contour Electrol Motorized Projection 35177L User manual, User manual Da-Lite 35177L Contour Electrol Motorized Projection 35177L, Da-Lite, 35177L, Contour, Electrol, Motorized, Project

User manual for Da-Lite 35177L Contour Electrol Motorized Projection 35177L

Da-Lite 35177L Contour Electrol Motorized Projection 35177L
  • Manufacturer: Da-Lite
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projection Screens - Electric Screens (Wide Formats)
  • Safety instructions
  • Startup and operation of the electric screens (wide formats)
  • Tips for setting up your Da-Lite
  • Settings and expert assistance
  • Contact Da-Lite service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Da-Lite 35177L Contour Electrol Motorized Projection 35177L, which address similar problems with connecting and setting up Electric Screens (Wide Formats) Da-Lite.


User manual for the Da-Lite 35177L Contour Electrol Motorized Projection 35177L

The user manual for the Da-Lite 35177L Contour Electrol Motorized Projection 35177L provides necessary instructions for the proper use of the product A/V Presentation - Projection Screens - Electric Screens (Wide Formats).

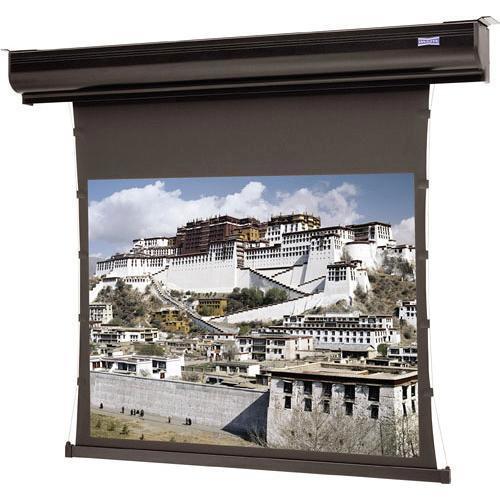

The Dalite 90 x 160" Contour Electrol Rear Projection Screen makes a great addition to any school room or business boardroom. It features a strong extruded aluminum case which is available in either black, white or graphite finish. When not in use, this screen easily retracts into its case which can either be mounted on a wall or in the ceiling. The Contour Electrol is a beautiful addition to any installation.
If you own a Da-Lite electric screens (wide formats) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Da-Lite 35177L Contour Electrol Motorized Projection 35177L in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Da-Lite 35177L Contour Electrol Motorized Projection 35177L:

Go To

Type
Style Contour Electrol
Front/Rear Projection Rear
Mount Wall or Ceiling
Finish DA-Tex; flame retardant and mildew resistant fiberglass
Tension Control Tensioned
Keystone Control Not Applicable
Dimensions
Overall Size Not Specified by Manufacturer
Image Size 90 x 160" (2.3 x 4 m)
Diagonal 184" (4.7 m)
Format HDTV
Aspect Ratio 16:9
Masking Options Standard black masking borders
Controls
Voltage 120VAC, 60Hz
Integrated Control With Low Voltage Controller
Motor mounted inside the roller with a patented noise silencer
Pre-set but adjustable limit switches to automatically stop picture surface in the "up" and "down" positions
Control Options Three position wall switch (included)
Single Motor Low Voltage Control (LVC) (external)
Single Motor Low Voltage Control (LVC) - built-in (adds 3.75" to length of case)
Wireless Remote Control for LVC; Radio Frequency Remote
Infrared Remote
Key Locking Switch Cover Plate for 120V Switch or LVC
Key Operated Switch for 120V only (Note: Cannot be used with LVC)
220 Volt (50Hz) Motor
Anchor Speaker Option, pair with brackets
Casing
Color White, textured powder coat

Black available as an option
Material Extruded aluminum
Length 173.75" (4.4 m)
General
Shipping Weight 125 lbs (56.7kg)
Packaging Info
Package Weight 141.0 lb
Box Dimensions (LxWxH) 192.0 x 13.0 x 10.0"
The user manual for the Da-Lite 35177L Contour Electrol Motorized Projection 35177L can be downloaded in .pdf format if it did not come with your new electric screens (wide formats), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Da-Lite users keep a unique electronic library for Da-Lite electric screens (wide formats)s, where you can use our link to download the user manual for the Da-Lite 35177L Contour Electrol Motorized Projection 35177L.

The user manual lists all of the functions of the Da-Lite 35177L Contour Electrol Motorized Projection 35177L, all the basic and advanced features and tells you how to use the electric screens (wide formats). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Da-Lite service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Da-Lite 35177L Contour Electrol Motorized Projection 35177L. User manuals are also available on the Da-Lite website under A/V Presentation - Projection Screens - Electric Screens (Wide Formats).
