User manual edelkrone SliderPLUS PRO XLarge (25.1") 80835

Operating instructions and pdf manual for use - edelkrone SliderPLUS PRO XLarge (25.1") 80835 User manual, User manual edelkrone SliderPLUS PRO XLarge (25.1") 80835, edelkrone, SliderPLUS, PRO, XLarge, 25.1, , 80835,


User manual for edelkrone SliderPLUS PRO XLarge (25.1") 80835

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
edelkrone SliderPLUS PRO XLarge (25.1
  • Manufacturer: edelkrone
  • Basic description and contents of package
  • Product classification: Professional Video - Tripods, Supports & Rigs - Camera Sliders
  • Safety instructions
  • Startup and operation of the camera sliders
  • Tips for setting up your edelkrone
  • Settings and expert assistance
  • Contact edelkrone service
  • Troubleshooting
  • Warranty information
  • Price: 1000 USD

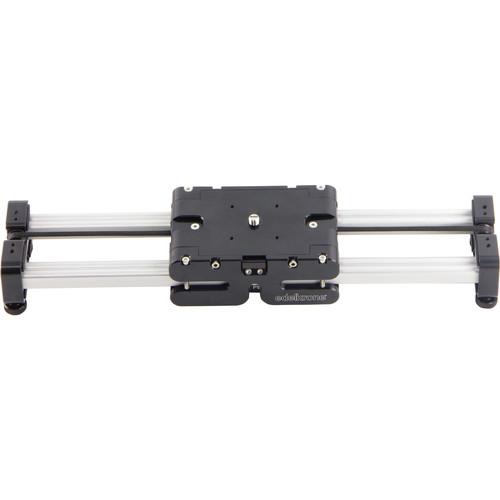

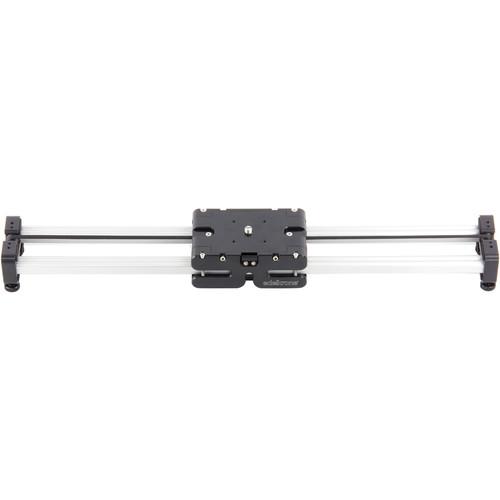

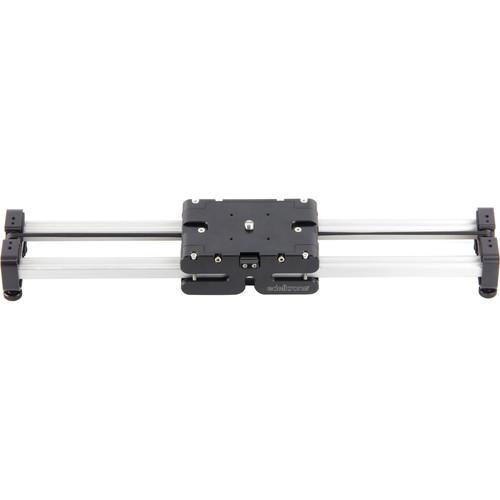

edelkrone SliderPLUS PRO XLarge (25.1 edelkrone SliderPLUS PRO XLarge (25.1 edelkrone SliderPLUS PRO XLarge (25.1
Click to enlarge image

We recommend checking out our discussion threads on the edelkrone SliderPLUS PRO XLarge (25.1") 80835, which address similar problems with connecting and setting up Camera Sliders edelkrone.



User manual for the edelkrone SliderPLUS PRO XLarge (25.1") 80835

The user manual for the edelkrone SliderPLUS PRO XLarge (25.1") 80835 provides necessary instructions for the proper use of the product Professional Video - Tripods, Supports & Rigs - Camera Sliders.

The SliderPLUS PRO XLarge from edelkrone uses the same unique tracking mechanism found in the SliderPLUS V2, which allows the rails of the slider to move with the camera when mounted on a tripod. This gives the slider 34.8" of sliding range in a unit that is only 25.1" long. Featuring a stronger structure that the SliderPLUS V2, the PRO XLarge can support higher load capacities up to 22 lb pounds, for use with professional camera setups. Its compact size makes it ideal for travel, as it takes of up less room in your camera bag than other sliders with a similar sliding range.

The tracking system works by having two thin bands that are connected to each side of the mounting plate and base plate. When placed on a flat surface, the base plate travels in the opposite direction of the mounting plate. This yields results similar to traditional sliders. To take advantage of the design, the SliderPLUS PRO needs to be mounted to a tripod. When mounted on a tripod, the movement of the base plate is restricted, causing the rails to move through the base plate in the same direction as the mounting plate. This uses the length of the rails twice, doubling the sliding range.

With traditional sliders, you're often limited to the amount of dolly in/out you can do, because the slider itself usually will end up in the shot eventually. With the SliderPLUS PRO, the rails are also retracting backwards with the camera, allowing for longer dolly in/out shots. A lock mechanism can be engaged to keep the slider from moving if the tripod becomes unlevel. When locked, you can safely move your setup around without having to remove your components from the slider.

The slider provides a 3/8" threaded hole at the bottom of the base plate for attaching to tripods, and provides a retractable 3/8" screw for mounting a flat base tripod head to the mounting plate.
If you own a edelkrone camera sliders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the edelkrone SliderPLUS PRO XLarge (25.1") 80835 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the edelkrone SliderPLUS PRO XLarge (25.1") 80835:
Materials Temperature treated aluminum rods
Steel ball bearings
CNC machined aluminum parts
Mechanism Type Non-friction ball bearing
Tracking system
Capacity 22 lb (10 kg)
Mounting Interface 3/8"
Sliding Range On ground: 17.7 (45 cm)
On tripod: 34.8" (88 cm)
Suggested Tripod Leg Distance 47" (120 cm) or more between the points that the tripod legs contact the ground
Dimensions (HxWxD) 25.1 x 3.6 x 2.5" (63.7 x 9.2 x 6.4 cm)
Weight 5.02 lb (2.28 kg)
Packaging Info
Package Weight 8.8 lb
Box Dimensions (LxWxH) 28.898 x 7.559 x 4.409"
The user manual for the edelkrone SliderPLUS PRO XLarge (25.1") 80835 can be downloaded in .pdf format if it did not come with your new camera sliders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other edelkrone users keep a unique electronic library for edelkrone camera sliderss, where you can use our link to download the user manual for the edelkrone SliderPLUS PRO XLarge (25.1") 80835.

The user manual lists all of the functions of the edelkrone SliderPLUS PRO XLarge (25.1") 80835, all the basic and advanced features and tells you how to use the camera sliders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from edelkrone service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the edelkrone SliderPLUS PRO XLarge (25.1") 80835. User manuals are also available on the edelkrone website under Professional Video - Tripods, Supports & Rigs - Camera Sliders.
