User manual for the MOTU 896mk3 - FireWire/USB 2.0 Hybrid Audio Interface 4470
The user manual for the MOTU 896mk3 - FireWire/USB 2.0 Hybrid Audio Interface 4470 provides
necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

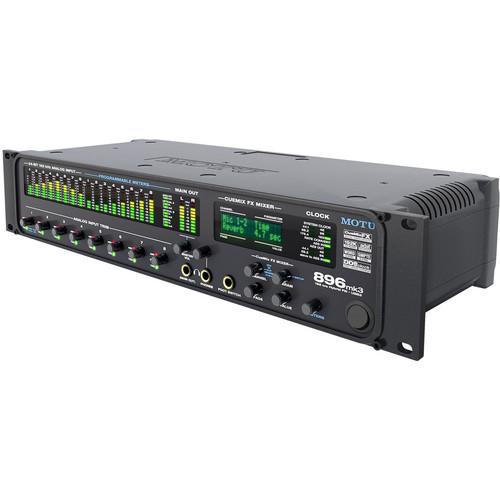

The 896mk3 from MOTU is a hybrid digital audio interface that features both FireWire and USB 2.0 connectivity. The interface can also function as a rack-mount, standalone mixer without the need for a computer. It provides eight channels of 24-bit/192kHz analog recording and playback, combined with sixteen channels of optical digital I/O, stereo AES/EBU, S/PDIF, and separate analog main outs.
An on-board CueMix FX digital mixer allows for routing guitars, synthesizers, keyboards, drum machines and even effects processors with no latency and no processor strain on the host computer. Hardware DSP-driven effects processing can be applied to inputs, outputs and busses independent of the host computer.
DSP effects include the Classic Reverb with reverb times of up to sixty seconds, and a seven-band parametric EQ featuring filter types modeled after British analog console EQs. Also included are a conventional compressor and the Leveler, an accurate model of the legendary LA-2A optical compressor that provides automatic gain control.
All analog inputs are equipped with V-Limit, a hardware limiter that helps prevent digital clipping from overloaded input signals. Additional protection can be applied to the microphone/guitar inputs by enabling the Soft Clip feature, which engages just before clipping and helps reduce perceptible distortion.
Powered monitors can be plugged directly into the outputs of the interface and the output attenuated from the software or a front-panel control. Main out volume is not limited to stereo operation, and includes quad, 5.1, 7.1 and even user-defined configurations are available. Additional programming allows for all thirty-two outputs to be controlled with the master volume knob.
If you own a MOTU audio interfaces & systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the MOTU 896mk3 - FireWire/USB 2.0 Hybrid Audio Interface 4470 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the MOTU 896mk3 - FireWire/USB 2.0 Hybrid Audio Interface 4470:
Specifications
Connectivity
FireWire USB 2.0
Converters
24-bit
Sample Rates
44.1, 48, 88.2, 96, 176.4 and 192kHz
Analog In
8 x Neutrik combo/XLR
Analog Outputs
8 x XLR 2 x XLR main output 2 x 1/4" TRS phone Headphone
Digital Input Connectors
2 x ADAT Lightpipe 1 x XLR AES/EBU (stereo) 1 x RCA coaxial S/PDIF (stereo) 1 x BNC Wordclock
Digital Output Connectors
2 x ADAT Lightpipe 1 x XLR AES/EBU (stereo) 1 x RCA coaxial S/PDIF (stereo) 1 x BNC Wordclock
MIDI In/Out
No
Sync In/Out
Wordclock, ADAT, S/PIDF and AES/EBU
Headphone Output
Yes
THD + N
Not specified by manufacturer
Dynamic Range
Not specified by manufacturer
Frequency Response
Not specified by manufacturer
Power Requirements
100~240V, 50/60Hz auto switching internal power supply
Minimum System Requirements
Mac PowerPC G4 CPU 1GHz or faster (including PowerPC G5 CPUs and all Intel processor Macs) OS X v10.5.8 or later required, 10.6, or 10.7 1GB RAM (2GB or more recommended) Available FireWire or USB2 port Large hard drive (preferably at least 250GB)
PC Pentium-based 1GHz PC compatible or faster equipped with at least one USB2 or FireWire port Windows Vista SP2 32- or 64-bit, or Windows 7 1GB RAM (2GB or more recommended) Available FireWire or USB2 port Large hard drive (preferably at least 250GB)
