User manual for the RTcom USA HDS-21R HDMI Switcher HDS-21R
The user manual for the RTcom USA HDS-21R HDMI Switcher HDS-21R provides
necessary instructions for the proper use of the product TVs & Entertainment - Switchers, Extenders & Wireless - HDMI & A/V Switchers.

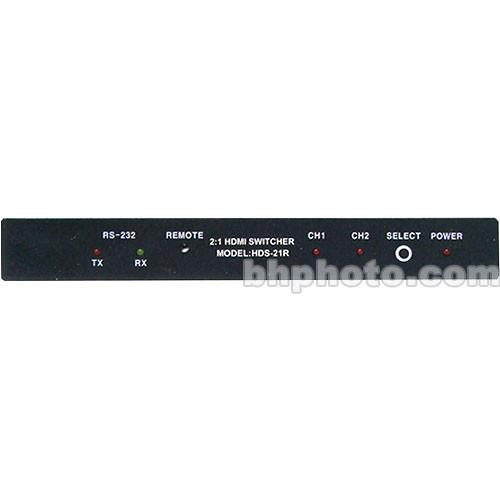

The HDS-21R HDMI Switcher from RTcom is a switcher designed to allow (2) different digital audio and video sources to share (1) video display. This unit is ideally suited for home theater systems that require different HDMI connectors to view multiple video sources. Do away with the hassle of repeatedly connecting and disconnecting cables by using this convenient switcher.
This switcher will connect HDMI audio and video to compatible HDTV, LCD monitors, or digital projectors. It supports digital video & audio in accord with the HDMI standard 1.2 specification and is also compatible with Blue-Ray and HDCP. Additionally, it is backwards-compatible with all DVI devices through use of an HDMI-to-DVI adapter cable (DDH-02). The switcher can be controlled manually or with the included IR remote control.
This unit is completely plug and play and requires no software installation. It also features an intuitive LED display provides visual cues for video source channel selection. Signal Amplification on this model allows for the extension of the interconnect cable length up to 50' without signal loss.
|
If you own a RTcom USA hdmi & a/v switchers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the RTcom USA HDS-21R HDMI Switcher HDS-21R in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the RTcom USA HDS-21R HDMI Switcher HDS-21R:
| Inputs | (2) HDMI "A" Type Female ports | | Outputs | (1) HDMI "A" Type Female port | | Bandwidth | 1.65GHz (single link) | | Resolution | Up to 1920x1080@60hz, HD signal up to 1080p | | Control | Manual, IR Remote Control | | Audio | Up to 24bit /192KHz | | Power | DC 5V, 2A | | Dimensions (HxWxD) | 9 x 4-1/8 x 1" | | Weight | Not specified by manufacturer | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 9.9 x 8.4 x 1.4" | |
