User manual Sony STR-DN860 7.2-Channel Wi-Fi Network AV Receiver STR-DN860

Operating instructions and pdf manual for use - Sony STR-DN860 7.2-Channel Wi-Fi Network AV Receiver STR-DN860 User manual, User manual Sony STR-DN860 7.2-Channel Wi-Fi Network AV Receiver STR-DN860, Sony, STR-DN860, 7.2-Channel, Wi-Fi, Network, AV

User manual for Sony STR-DN860 7.2-Channel Wi-Fi Network AV Receiver STR-DN860

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Sony STR-DN860 7.2-Channel Wi-Fi Network AV Receiver STR-DN860
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Receivers & Amplifiers - Receivers
  • Safety instructions
  • Startup and operation of the receivers
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
  • Price: 448 USD

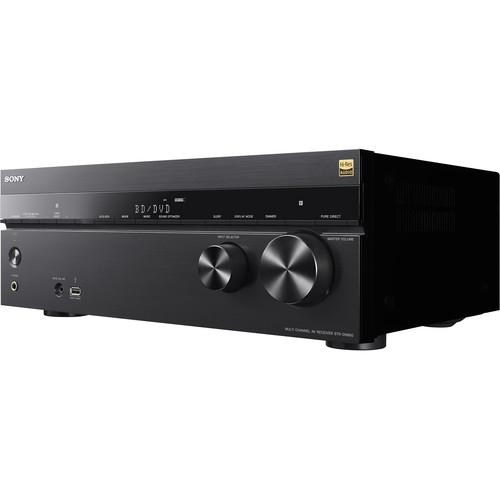

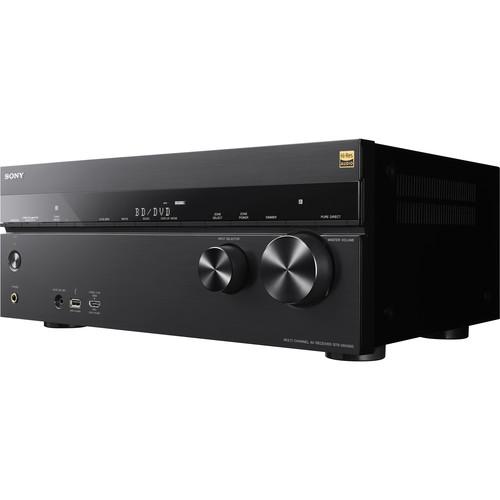

Sony STR-DN860 7.2-Channel Wi-Fi Network AV Receiver STR-DN860 Sony STR-DN860 7.2-Channel Wi-Fi Network AV Receiver STR-DN860
Click to enlarge image
We recommend checking out our discussion threads on the Sony STR-DN860 7.2-Channel Wi-Fi Network AV Receiver STR-DN860, which address similar problems with connecting and setting up Receivers Sony.


User manual for the Sony STR-DN860 7.2-Channel Wi-Fi Network AV Receiver STR-DN860

The user manual for the Sony STR-DN860 7.2-Channel Wi-Fi Network AV Receiver STR-DN860 provides necessary instructions for the proper use of the product TVs & Entertainment - Receivers & Amplifiers - Receivers.

Experience powerful home theater sound, automatic speaker setup, and video upscaling with the STR-DN860 7.2-Channel Wi-Fi Network AV Receiver from Sony. This receiver features 7.2-channel speaker output and delivers up to 150W per channel at 6 ohms. Built-in Wi-Fi, Google Cast, and Bluetooth connectivity allows you to wirelessly connect to audio sources such as computers, smartphones and tablets. An Ethernet port is also available for wired high-speed Internet connections. AirPlay technology is onboard for conveniently streaming music from compatible devices like iPods and iPhones. You can also connect audio sources to the receiver's front-panel USB.

The Sony STR-DN860 is well-equipped for video connections with 5 HDMI inputs. In addition to 3D and 4K video pass-through, you can upscale lower resolution video sources to near-4K quality. For enhanced system control, you can download the free SongPal app to control the receiver from your mobile device. The integrated graphical user interface allows you to intuitively navigate the receiver's menu system. Built-in high-resolution audio support allows you to take advantage of dynamic surround sound formats like DTS-HD and DolbyTrueHD.
If you own a Sony receivers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony STR-DN860 7.2-Channel Wi-Fi Network AV Receiver STR-DN860 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony STR-DN860 7.2-Channel Wi-Fi Network AV Receiver STR-DN860:
Specifications
    Audio
    Channels 7.2
    Amplifier Power 6 Ohms, 20 - 20 kHz, 2-ch driven: 95 W + 95 W (0.09%)
    6 Ohms, 1 kHz, 2-ch driven: 110 W + 110 W
    6 Ohms, 1 kHz, 1-ch driven: 150 W
    Total Harmonic Distortion THD: 1% at 6 ohms, 1 kHz, 2-ch driven
    THD: 0.9% at 6 ohms, 1 kHz, 1-ch driven
    Audio Decoding Dolby Digital EX
    Dolby Digital
    96 kHz/24-bit
    Dolby Pro Logic, II, IIx
    Dolby Dual Mono
    Dolby TrueHD
    Dolby Digital
    DTS-HD Master Audio
    DTS-HD High-Resolution
    DTS 96/24
    DTS
    DTS-ES (Matrix 6.1 / Discrete 6.1)
    Sound Fields True Concert Mapping: Concertgebouw/Musikverein
    Pure Direct
    PLII Movie
    PLIIx Movie
    PLII Music
    Portable Audio Enhancer
    PLIIx Music
    Stadium
    Sports
    Sound Field Link
    Live House
    Multi Stereo
    Neo:6 Music
    Neo:6 Cinema
    A.F.D. Auto
    Concert Hall B
    HD-D.C.S
    Analog Direct
    Headphone 2ch
    Headphone Direct
    Jazz Club
    2ch
    Impedance Matching Capability 6 - 16 ohms
    Crossover Frequency Subwoofer: 40 - 200 Hz (17 points)
    Tuner Yes (30 FM and 30 AM presets)
    Supported File Formats Network:
    MP3 (MPEG 1 Audio Layer-3): 32 - 320 kbps
    AAC: 16 - 320 kbps
    WMA9 Standard: 40 - 320 kbps
    WAV: 32 - 192 kHz
    16-bit PCM: 32 - 192 kHz
    24-bit PCM FLAC: 44.1 - 192 kHz
    16-bit FLAC: 44.1 - 192 kHz
    24-bit FLAC AIFF: 32 - 192 kHz
    16-bit PCM: 32 - 192 kHz
    24-bit PCM ALAC: 32 - 96 kHz
    16-bit ALAC: 32 - 96 kHz
    24-bit ALAC
    USB
    MP3
    AAC/HE
    WMA
    LPCM
    FLAC
    Dolby Digital
    DSF
    DSDIFF
    AIFF
    ALAC
    Sync A/V Sync Auto Mode: Yes
    A/V Sync Sampling Frequency: 192 kHz
    A/V Sync Time (msec): 0-300 msec
    A/V Sync: Variable
    Video
    HDMI Video Output 4K, 1080p, 1080/24p
    Upscaling Yes (Up to 4K)
    3D Support Pass-through
    HDMI CEC Yes (BRAVIA Sync)
    Deep Color / xvYCC Support Yes, up to 36-bit
    Connectivity
    Bluetooth Version: 2.1 + EDR
    Profiles: A2DP, AVRCP ver1.3
    Codecs: SBC, aptX, AAC
    NFC Yes
    DLNA Yes
    Apple AirPlay Certified Yes
    Bi-Amp Capability Yes
    Audio Return Channel (ARC) Yes
    MHL Input: 1 x Rear
    Maximum Current: 900 mA
    iPod Compatibility USB: iPhone 5s, iPhone 5c, iPhone 5, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G, iPod classic, iPod touch (5th, 4th, and 3rd gen), iPod (2nd gen), iPod nano (7th, 6th, 5th, 4th, and 3rd gen)
    Inputs 5 x HDMI
    1 x USB (front)
    1 x Digital Coaxial
    2 x Digital Optical
    2 x Composite Video
    4 x Stereo RCA
    Outputs 1 x HDMI
    1 x Composite Video
    1 x Headphone (front)
    2 x Subwoofer
    Other Interfaces 1 x Ethernet
    1 x Calibration Microphone
    1 x FM Antenna
    Speaker Connectors Center
    Front A (L + R)
    Front B (L + R, shared with surround back/bi-amp/front high)
    Surround (L + R)
    Surround Back (L + R)
    Input Assigning Optical, Coax
    HDCP Version 2.2
    HDMI Version 2.0
    General
    Graphical User Interface Yes (English, French, Spanish, German, Japanese)
    Sleep Timer Yes, up to 2-hours
    Display 10-digit, dot matrix
    Power Consumption Standby: 0.3 W
    Active: 240 W
    Power Requirements 120 VAC, 60 Hz
    Dimensions (WxHxD) 16.9 x 6.1 x 13.0" (430.0 x 156.0 x 329.3 mm)
    Weight 17.7 lb (8.0 kg)
    Packaging Info
    Package Weight 21.0 lb
    Box Dimensions (LxWxH) 19.0 x 15.5 x 8.5"
    The user manual for the Sony STR-DN860 7.2-Channel Wi-Fi Network AV Receiver STR-DN860 can be downloaded in .pdf format if it did not come with your new receivers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony receiverss, where you can use our link to download the user manual for the Sony STR-DN860 7.2-Channel Wi-Fi Network AV Receiver STR-DN860.

    The user manual lists all of the functions of the Sony STR-DN860 7.2-Channel Wi-Fi Network AV Receiver STR-DN860, all the basic and advanced features and tells you how to use the receivers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony STR-DN860 7.2-Channel Wi-Fi Network AV Receiver STR-DN860. User manuals are also available on the Sony website under TVs & Entertainment - Receivers & Amplifiers - Receivers.
