User manual for the Universal Audio Apollo Twin DUO Desktop Interface APTWD
The user manual for the Universal Audio Apollo Twin DUO Desktop Interface APTWD provides
necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

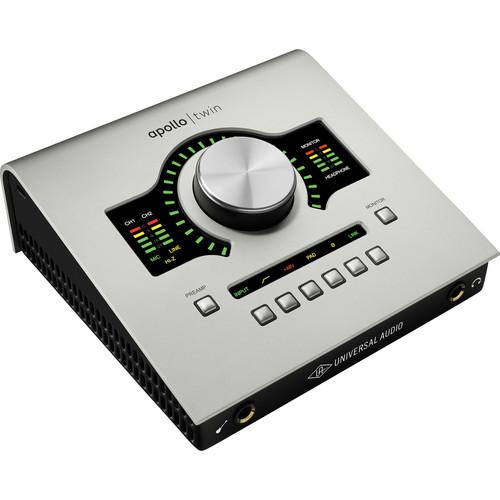

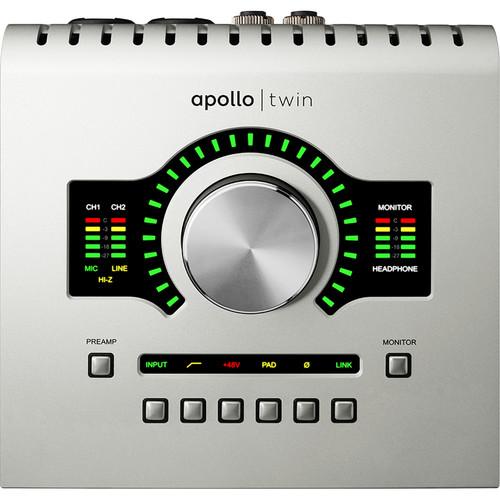

The Apollo Twin DUO Desktop Interface with Realtime UAD Processing from Universal Audio is a Thunderbolt audio interface capable of capturing your audio in up to 24-bit/192 kHz with realtime, low-latency UAD plug-in processing. It features Universal Audio's Unison technology, which, in conjunction with their UAD plug-ins, is capable of emulating a range of tube and solid-state microphone preamps, including their impedance and gain-stage sweet spots.
The Apollo Twin DUO includes the Realtime Analog Classics UAD plug-in bundle, featuring legacy editions of the LA-2A Classic Audio Leveler, the 1176LN Limiting Amplifier, and Pultec EQP-1A Program Equalizer, plus Softube Amp Room Essentials, and the 610-B Tube Preamp.
If you own a Universal Audio audio interfaces & systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Universal Audio Apollo Twin DUO Desktop Interface APTWD in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Line Inputs 1 & 2: Jack Type (combo mic/line balanced inputs): 1/4" (6.3 mm) female TRS balanced Dynamic Range: 117.5 dB, A-weighted Signal to Noise Ratio: 117.5 dB, A-weighted Total Harmonic Distortion + Noise: -108 dBFS CMRR: Greater than 60 dB (10' cable) Frequency Response: 20 Hz to 20 kHz, ±0.1 dB Input Impedance: 10 kOhms Gain Range: +10 to +65 dB Maximum Input Level (@ Minimum Gain): 18 dBV Maximum Input Level (@ Maximum Gain): -37 dBV Stereo Level Balance: ±0.05 dB
Microphone Inputs
Microphone Inputs 1 & 2: Jack Type (combo mic/line balanced inputs): Female XLR balanced (pin 2 positive) Phantom Power: +48 V, switchable per input Dynamic Range: 118 dB, A-weighted Signal to Noise Ratio: 118 dB, A-weighted Total Harmonic Distortion + Noise: -110 dBFS Equivalent Input Noise: -127 dB Frequency Response: 20 Hz to 20 kHz, ±0.1 dB CMRR: Greater than 70 dB (10' cable) Default Input Impedance: 5.4 kOhms (variable via Unison preamp model) Gain Range: +10 to +65 dB Pad Attenuation: 20 dB (variable via Unison preamp model), switchable per input Maximum Input Level (@ Minimum Gain, with Pad): 23.8 dBV Maximum Input Level (@ Maximum Gain, with Pad): -31.2 dBV
Hi-Z Input
Jack Type: 1/4" (6.3 mm) female TS unbalanced Dynamic Range: 117 dB, A-weighted Signal-to-Noise Ratio: 117 dB, A-weighted Total Harmonic Distortion + Noise: -101 dBFS Frequency Response: 20 Hz to 20 kHz, ±0.1 dB Input Impedance: 1 MOhms Maximum Input Level (@ Minimum Gain): 10 dBV Maximum Input Level (@ Maximum Gain): -45 dBV
Line Outputs
Line Outputs 3 & 4: Jack Type: 1/4" (6.3 mm) female TRS balanced Dynamic Range: 118 dB, A-weighted Signal-to-Noise Ratio: 118 dB, A-weighted Total Harmonic Distortion + Noise: -107 dBFS Frequency Response: 20 Hz to 20 kHz, ±0.1 dB Stereo Level Balance: ±0.05 dB Channel Separation: Greater than 120 dB Output Impedance: 600 ohms Maximum Output Level: 18 dBV
Monitor Outputs
Monitor Outputs 1 & 2: Jack Type: 1/4" (6.3 mm) female TRS balanced Frequency Response: 20 Hz to 20 kHz, ±0.1 dB Dynamic Range: 115 dB, A-weighted Signal-to-Noise Ratio: 115 dB, A-weighted Total Harmonic Distortion + Noise: -105 dBFS Channel Separation: Greater than 118 dB Stereo Level Balance: ±0.05 dB Output Impedance: 600 ohms Output Gain Range: -96 to 0 dB Maximum Output Level: 18 dBV Operating Reference Level: +14 dBu, +20 dBu (selectable)
Headphone Output
Stereo Headphone Output: Jack Type: 1/4" (6.3 mm) female TRS stereo, unbalanced Frequency Response: 20 Hz to 20 kHz, ±0.1 dB Dynamic Range: 113 dB, A-weighted Signal-to-Noise Ratio: 113 dB, A-weighted Channel Separation: Greater than 110 dB Total Harmonic Distortion + Noise: -101 dBFS Stereo Level Balance: ±0.11 dB Output Impedance: 10 ohms Output Gain Range: INF to 0 dB Maximum Output Power: 80 mW into 600 ohms
Apple Mac with available Thunderbolt port OS X 10.8.5 Mountain Lion, 10.9.x Mavericks, or 10.10.x Yosemite 4 GB available disk space Host software that supports VST, Audio Units, RTAS, or AAX 64 plug-in host formats Internet connection to download software and authorize UAD plug-ins Thunderbolt cable (not included)
