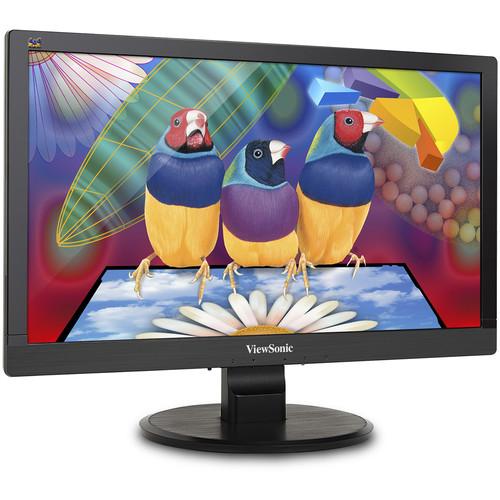

ViewSonic VA2055Sm 20 ViewSonic VA2055Sm 20
Click to enlarge image

We recommend checking out our discussion threads on the ViewSonic VA2055Sm 20" Widescreen LED Backlit LCD VA2055SM, which address similar problems with connecting and setting up Computer Monitors ViewSonic.



User manual for the ViewSonic VA2055Sm 20" Widescreen LED Backlit LCD VA2055SM

The user manual for the ViewSonic VA2055Sm 20" Widescreen LED Backlit LCD VA2055SM provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

Use the VA2055Sm 20" Widescreen LED Backlit LCD Monitor from ViewSonic for work or for play as it features a 1920 x 1080 Full HD resolution providing a crisp, clear picture quality. In addition to the Full HD resolution you benefit from a 3,000:1 contrast ratio for deeper dark and brighter light colors. ViewSonic has also included their own SuperClear screen technology for more accurate vivid color representation viewable from nearly any angle with support for 178° horizontal and vertical viewing angles. You can also choose from specific viewing modes including game, movie, web, text, and mono to suit the content being viewed on the display. On the back of the monitor you will find both VGA and DVI-D inputs for easy setup. Once setup, you can tilt the monitor forward 3° and back 20° for improved viewing comfort.
If you own a ViewSonic computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ViewSonic VA2055Sm 20" Widescreen LED Backlit LCD VA2055SM in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ViewSonic VA2055Sm 20" Widescreen LED Backlit LCD VA2055SM:
LCD
Type Color Active Matrix TFT LCD
Display Area 17.1 x 9.4" / 43.4 x 23.9 cm
19.5" / 49.5 cm diagonal
Resolution 1920 x 1080
Brightness 250 cd/m² (typical)
Contrast Ratio 3,000:1 (typical)
Viewing Angles (H/V) 178°/178°
Colors 16.7 million (6-bit + Hi-FRC)
Response Time 25 ms (GtG)
Light Source White-light LED
Backlight Life 30,000 hours (minimum)
Panel Surface Anti-glare, hard-coating (3H)
Video Input
Analog/Digital VGA, DVI-D
Frequency Fh: 24~82 kHz, Fv: 50~75 Hz
Sync Separate sync
Composite sync
Sync on green
Audio Output
Speakers 2 x 2 W speakers
Compatibility
PC Up to 1920 x 1080 non-interlaced
Mac Up to 1920 x 1080
Connectors
Analog/Digital 1 x VGA
1 x DVI-D
Audio (In/Out) 1 x 3.5 mm headphone jack
1 x 3.5 mm audio in
Power External power adapter
Controls
Front Panel Controls Power, 1, Up, Down, 2
OSD Controls Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall, (See user guide for complete OSD functionality)
Power
Voltage 100-240 VAC (universal), 50/60 Hz
Power Consumption Optimize: 18 W (typical)
Consumption: 24 W (typical) / 35 W (maximum)
Conserve: 15 W (typical)
Operating Conditions
Temperature 32 to 104°F / 0 to 40°C
Humidity 20 to 90% non-condensing
Other Specifications
Ergonomics Tilt: Forward 3° / back 20°
VESA Mount 100 x 100 mm
Regulations US NRTL w/CA (cULus/cTUVus/cETLus/cBVus), FCC-B w/ ICES003, ENERGY STAR, Mexico, Mexico Energy, EPEAT Silver
Dimensions With Stand: 18.6 x 11.3 x 8.3" / 47.2 x 28.8 x 21.2 cm
Without Stand: 18.6 x 11.3 x 1.9" / 47.2 x 28.8 x 4.8 cm
Weight With Stand: 6.8 lb / 3.1 kg
Without Stand: 5.4 lb / 2.5 kg
Packaging Info
Package Weight 9.0 lb
Box Dimensions (LxWxH) 20.8 x 15.8 x 4.2"
The user manual for the ViewSonic VA2055Sm 20" Widescreen LED Backlit LCD VA2055SM can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ViewSonic users keep a unique electronic library for ViewSonic computer monitorss, where you can use our link to download the user manual for the ViewSonic VA2055Sm 20" Widescreen LED Backlit LCD VA2055SM.

The user manual lists all of the functions of the ViewSonic VA2055Sm 20" Widescreen LED Backlit LCD VA2055SM, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ViewSonic service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ViewSonic VA2055Sm 20" Widescreen LED Backlit LCD VA2055SM. User manuals are also available on the ViewSonic website under Computers & Solutions - Monitors & Displays - Computer Monitors.
